P1 Start Booster

P1 START BOOSTER  includes:

LED CHARGE INDICATOR

The test button allows users to easily check the charge level of the booster and test the alternator of a vehicle.

RIBBED ABS CHASSIS

Reinforced internal structure provides strength and durability making a dependable chassis.

ULTRA HIGH GRADE CABLES

Full copper woven cables are extremely durable and allow for very limited losses providing the highest starting power.

• Included ○ Optional – Not Available

Powered by our premium 10th-generation starter batteries, our AGM boosters delivers reliable performance for a variety of applications.

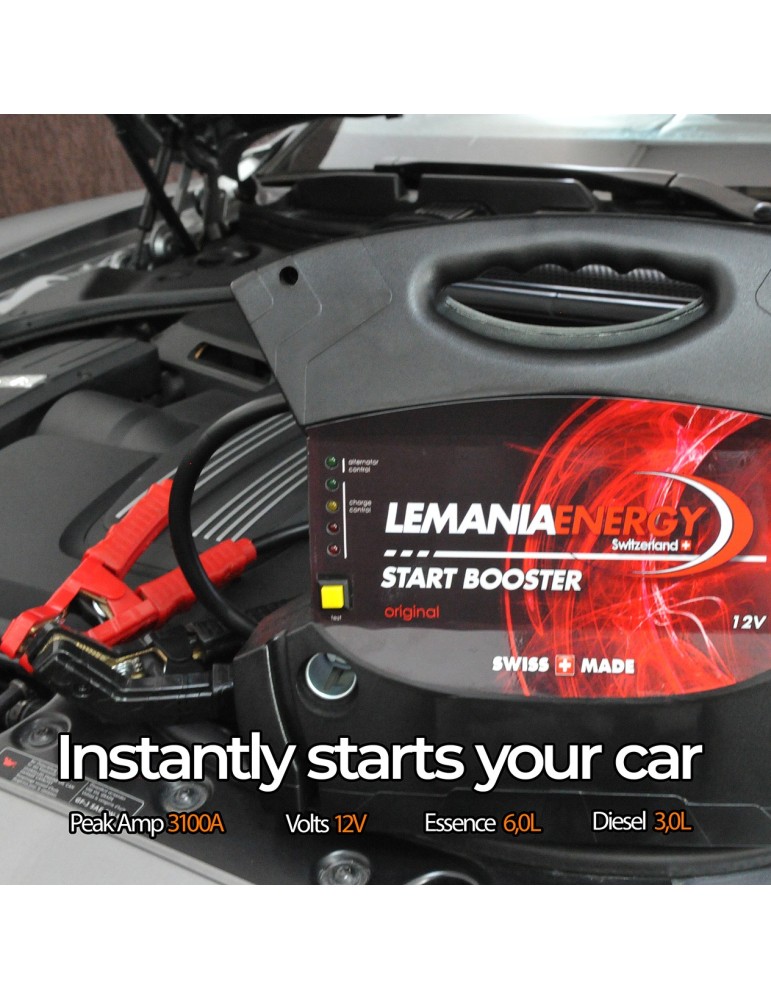

The P1 Start Boosters provide powerful jump-starting capabilities, with models designed to deliver up to 3100 amps, bringing dead batteries back to life in seconds.

Designed for use with quad, motorcycles, cars, boats, RVs, they are perfect for vehicles that need extra power to get going.

The P1-3100 Start Boosters may also be suitable for agricultural uses. Equipped with 25 mm2 cable  Ø , length 75 cm and fully insulated brass clamps. P1 Start Boosters are available in a number of models and are used by professionals every day.

OPERATING INSTRUCTIONS

Always wear safety equipment before trying to jump start your vehicle. Make sure the area is well ventilated and that the terminals are clean.
Ensure that your unit is fully charged before attempting to jump start.
If you have a 12/24V unit, make sure that the voltage selector switch is on “OFF” or that the red voltage
connector plug is unplugged. If you have a 12V (or 24V) unit with ON\OFF switch, make sure it is turned
OFF. Please also make sure that the cables are not in the path of moving parts in the vehicle’s engine bay.
The battery terminal not connected to the frame should be connected first. The other terminal should be
connected to the frame, far from the battery and fuel lines. After starting, remove the frame connection
first, then the connection from the battery.
Please turn OFF the air conditioning, the radio and the lights before jump starting.
A. BATTERY START BOOSTER
1. Connect the positive (red) clamp to the positive terminal.
2. Connect the negative (black) clamp to the frame of the vehicle (ground).
3. If you have a 12/24V unit, choose the voltage with the voltage selector switch or with the
voltage connector plug 12V or 24V. If you have a 12V or 24V unit with ON/OFF switch, turn it ON.
4. Start your engine staying clear of the battery and the Start Booster. Make sure that it can
not fall inside the engine compartment.
5. Once started, first disconnect the negative clamp, then turn the voltage selection switch
OFF, or unplug the voltage connector plug from the 12/24V unit.
6. Then disconnect the red (positive) clamp.
7. Store both clamps immediately in their respective placing.
8. Recharge the Jump Starter with the supplied automatic charger.
Important: Should the vehicle refuse to start within 10 seconds, have the Start Booster cool down for 3
minutes before the next attempt. If it still doesn’t start, have your car battery or engine checked. It may
be that the car battery is defective as well and refuses to accept the cur- rent from the Jump Starter.
